Pulp Testing Equipment
Leading Manufacturers, Exporters and Wholesaler of Canadian Type Beating & Freeness Tester, Circular Type Hydraulic Controlled Laboratory Sheet Press, Consistency Determination Apparatus, KCL Type Hand Sheet Former, Lab Research Digester, Lab Rotary Digester, Laboratory Wood Chipper, Mechanical Type Beating & Freeness Tester, Pulp Disintegrator, Rapid Sheet Dryer, Semi-Automatic Hand Sheet Former, Sheet Drying Cabinet, Sheet Drying Cylinder, Square Type Pneumatic Controlled Laboratory Sheet Press, Wet Strength Tester and Wood Chip Classifier from Jaipur.

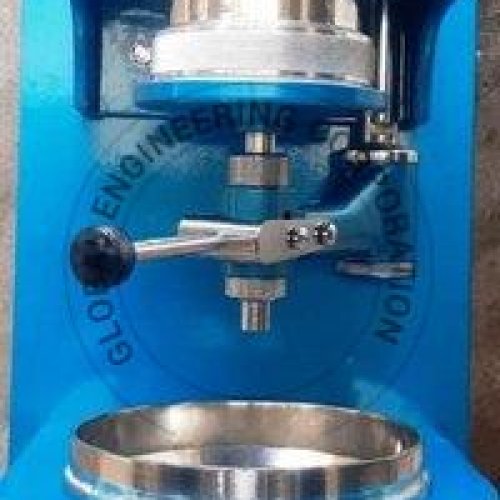

| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Capacity of the cylinder | 1000 ml |
| Volume | 23.5 +- 0.2 ml |
| Type | Canadian |
| Slope | 29 Degree +- 5 min |
| Volume in the Bottom Section of the Cone | 23.5 ± 0.2 ml |
| Slope of the main cone | 29° ± 5 min |
| Orifices Provided in Funnel | Two, One At the Bottom & other On the Side |
| Brand Name | Global Engineering Corporation |
Preferred Buyer From
| Location | Worldwide |
1 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Working Pressure | 3.5 kg/cm2 |
| Country of Origin | Made in India |
| Sheet Size | 165mm Dia. Maximum |
| Standards | CPPA C 4, ISO 5269, TAPPI T 205 |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40305-A |
Preferred Buyer From
| Location | Worldwide |

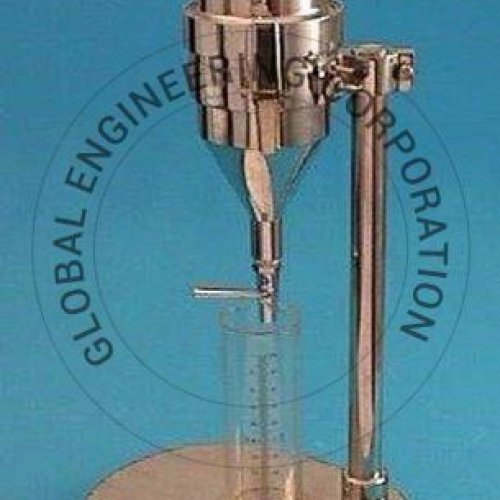

| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Capacity | 1000 ml |
| Container | Top Easily Removable |
| Grid Plate | Fitted with a Supporting Lattice |
| Clamping | Rapid Action & Efficient |
| Standards | TAPPI T 240 Om-02 |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40302 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Max Sheet Width | 0-200 mm |
| Machine Body Material | SS |
| Country of Origin | Made in India |
| Sheet Size | 165 X 165 mm |
| Trimmed Size | 200 cm2 |
| Wire Screen (upper ) | 100 mesh (ASTM std.) 150 mesh (TAPPI STD.) |
| Suction Height | 800 mm |
| Wire Screen (upper) | 100 mesh (ASTM std.) 150 mesh (TAPPI STD.) |
| Wire Screen (support) | 20 mesh |
| Drainage Time | 3.8 ± 0.2 sec., 20 0C ± 10C |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40303-B |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Industrial Use |
| Capacity | 20 Liter Capacity |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Digester Body | SS 316 Acid Proof Stainless Steel |
| Temp | 0- 2000 ± 80 C PID Type digital Programmable Temperature Indicator cum Controller |
| Max. Pressure | 20.0 Kg./cm2 |
| Motor | 2 HP, 440 V, 50 c/s |
| Standards | TAPPI, ISO, SCAN |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40319 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Capacity | 25 Liter |
| Material | Stainless Steel |
| Motor Power | 3 Phase, 440 V, 1/2 HP |
| Country of Origin | Made in India |
| Temperature Range | 50 - 250oC |
| Pressure | 15.0 Kg. / cm2 |
| Measuring Range | : 0.14 Ph. -1999+-1999 MV |
| Standards | TAPPI, SCAN, ISO |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40306 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Industrial |
| Color | Blue |
| Packaging Type | Wooden |
| Warranty | 1 Year |
| Finish | Coated |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40317 |
Preferred Buyer From
| Location | Worldwide |

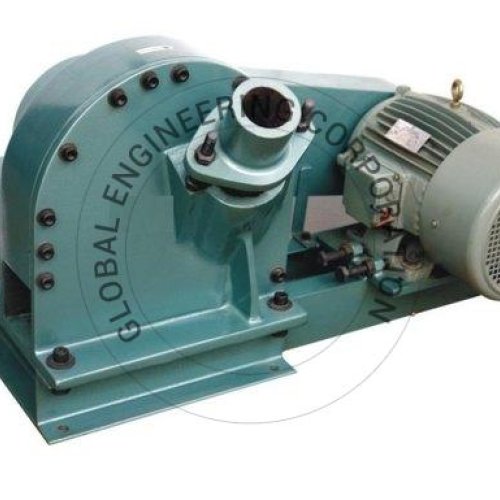

Specification:
- Quality of chips corresponds closely to that of the factory chips.
- Three chipping Knives of special Steel.
- Input Tube diameter 80 mm set at an angle of about 500.
- Adjustable Counter cutter.
- Quality of chips corresponds closely to that of the factory chips.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Sample | 2 Gm. Oven Dried |
| Consistency | 0.2% |
| Reproducibility | Approximately 1 0SR |
| Type | Manual |
| Brand Name | Global Engineering Corporation |
Preferred Buyer From
| Location | Worldwide |

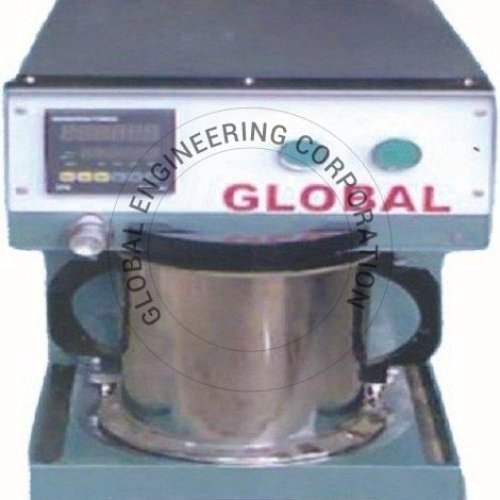

| Business Type | Manufacturer, Exporter, Supplier |
| Usage/application | Standardized Disintegration of Pulp to a Homogeneous Suspension |
| Shape | Round |
| Country of Origin | Made in India |
| Capacity | 2 Liters |
| Rotational Frequency (Revolutions) | 2975 ± 25 rpm |
| Motor | 0.5 KW, 3 Phase, 440V AC |
| Safety System | Double Safety System |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40309 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | Made in India |
| Sheet Size | Max width 250 mm and Max length 300 mm |
| Temperature Range | Maximum 180oC± 10oC |
| Power Consumption | 220 V, Single phase, 50 Hz/800 W |
| Heaters | Flat Electrical Elements Single Phase, 220 V, 400 W Each for Upper & Lower Plats |
| Power Supply/ Consumption | 220 V, Single phase, 50 Hz/800 W |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40304 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Industrial |
| Material | Stainless Steel |
| Packaging Type | Box |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Power Supply | 220-250 V 50 Hz AC. |
| Air Pressure | 600 KPA |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40303-D |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Drying Cabinets |
| Voltage | 220V |
| Automatic Grade | Automatic |
| Driven Type | Electric |
| Country of Origin | India |
| Brand Name | Global Engineering Corporation |
Preferred Buyer From
| Location | Worldwide |
The Drying Cabinet is used for faster drying and conditioning the hand sheets after pressing. The hot air passes through the holes in the drying ring to dry without effecting the surface or Brightness of the hand sheets.
The Design is in accordance with the Technical Section of British Paper & Board Industry. The chamber with heating unit and digital temperature controller to adjust the temperature inside the chamber.
| Business Type | Manufacturer, Exporter, Supplier |
| Max Temperature | 60 Degree C |
| Diameter | 500 / 800 mm (Manually/ Motorized) |
| Working Width | 600 / 700 mm (Manually/ Motorised) |
| Country of Origin | Made in India |
| Fan Motor | 0.1 HP |
| Heater Capacity | 2 KW, 220 V AC |
| Rotating Speed | 5 R.P.M. |
| Working Surface Temperature | 60 ºC |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40307 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Power | Single Phase, 220V 50 Hz |
| Size | 350 * 350 Mm Maximum |
| Country of Origin | Made in India |
| Working Pressure | 7 Kg/cm2 |
| Pressing Load | 16 KN, Stroke Length: 75 mm |
| Travelling | 210 mm |
| Power Supply | Single Phase, 220V 50 Hz |
| Brand Name | Global Engineering Corporation |
| Product Code | GEC-P40305-C |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Application | Strength Testing |
| Color | Grey |
| Voltage | 220V |
| Power | 1-3kw |
| Driven Type | Electric |
| Country of Origin | India |
| Brand Name | Global Engineering Corporation |
Preferred Buyer From
| Location | Worldwide |
The Universal’s wet strength tester is used for measuring the initial wet strength & elongation. This instrument is used for measuring the maximum tensile force per unit width that a wet test piece, made from a pulp under specified conditions, will stand before breaking in a tensile test. It measures the initial wet web strength and elongation of newsprint strip or pulp.
| Business Type | Manufacturer, Exporter, Supplier |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Power Supply | 400 V, 50 Hz |
| Stroke | 120mm |
| Sample Size | 8 - 10 Liters |
| Recommended Dry Content | 40 - 70% |
| Screening Time | 10 Minutes |
| Shaking Frequency | 2.7 Hz |
| Power Consumption | 1 KW |
| Brand Name | Global Engineering Corporation |
Preferred Buyer From
| Location | Worldwide |
